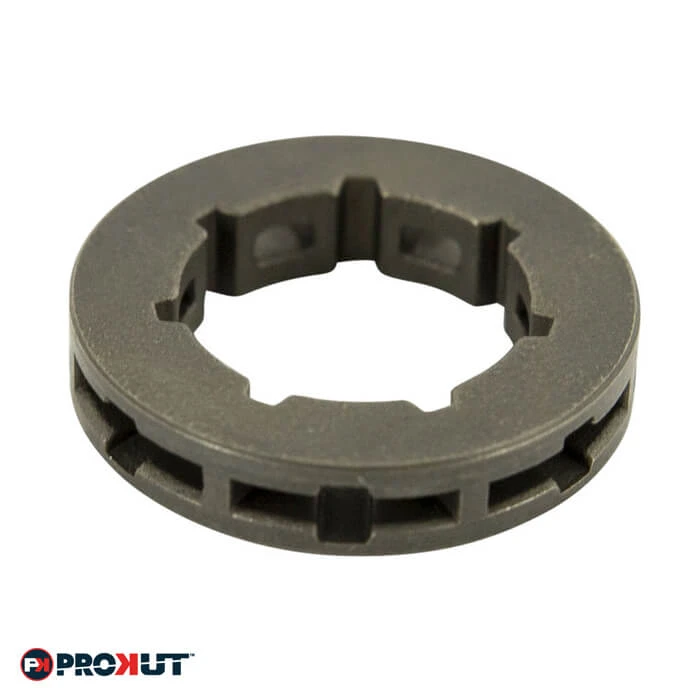

ProKut R/Ment Rim.404" 7th STD7SPLINE - 22270
Description
PROKUT replacement centre drive rim sprocket (rim only) .404" pitch, standard 7 spline x 7 drive teeth - suits selected Husqvarna, John Deere, McCulloch, Oleo-Mac, Poulan and STIHL.
ProKut chainsaw rim sprocket systems feature a floating rim which moves on a
splined hub to ensure the chain is perfectly aligned with the groove in the
guide bar resulting in longer life of all cutting components. This product is
the replaceable rim only.
Box Quantity: Tube of 10
Additional details
Product Details
Product Overview
Features:
ProKut rim sprockets are economical, long wearing and provide the best chain to guide bar alignment
ProKut rim sprockets are popular because the rim can be replaced several times before the clutch drum requires replacing
Rims: Yes, replacement rim only
Spline: Standard 7 spline (SD7)
Teeth: 7 Drive teeth
Please Note: Replaces our part number OMK22270.
*product may differ from image shown
Fits/Suits
Husqvarna 77, 160, 163, 180, 181, 185, 260, 263, 280, 281, 285, 288, 298, 380, 390XP, 390XPW, 394, 394XP, 395, 395XP,395XPG, 395XPW, 480, 1100, 2100, 2101, 3120XP, Jungle 3120, Jungle 394, Jungle 2101 and L-65 model chainsaws when fitted with a rim sprocket system and .404" pitch chain. Note: Please check your saw carefully prior to ordering, some of these saw models were also released fitted with a 3/8" pitch cutting system. John Deere CS71 and CS81 model chainsaws when fitted with a rim sprocket system and .404" pitch chain. Note: Please check your saw carefully prior to ordering, some of these saw models were also released fitted with a 3/8" pitch cutting system. McCulloch 155, 165, 355, 365, 375, 515, Mac 1-10 through 10-10 and 54-5723 model chainsaws when fitted with a rim sprocket system and .404" pitch chain. Note: Please check your saw carefully prior to ordering, some of these saw models were also released fitted with a 3/8" pitch cutting system. Oleo-Mac 970, 980 and 999F model chainsaws when fitted with a rim sprocket system and .404" pitch chain. Poulan 5500, 6000 model chainsaws when fitted with a rim sprocket system and .404" pitch chain. STIHL 07S, 08, 050, 051, 075, 076, 064, 066, 066 Magnum, 070, MS 660, MS 880 Magnum and S-10 model chainsaws when fitted with a rim sprocket system and .404" pitch chain. Note: Please check your saw carefully prior to ordering, some of these saw models were also released fitted with a 3/8" pitch cutting system.
